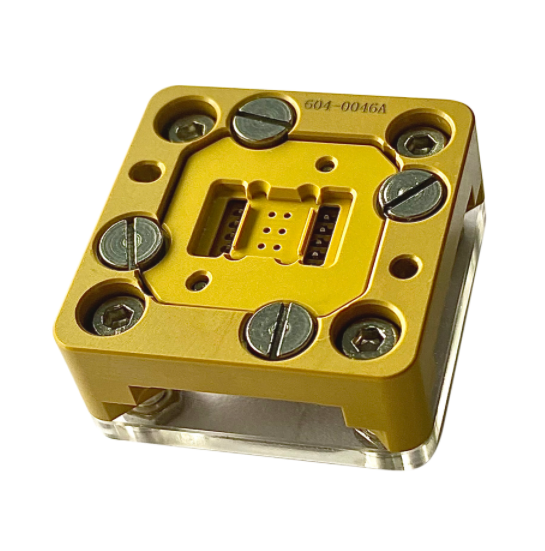

DFN Kelvin Test Socket
Suitable for packages such as BGA, QFN, LGA, QFP, and SOP;
Used for rapid chip verification, testing, and burn-in;
Clamshell design with dual-latch mechanism for manual or automated loading/unloading;
Suitable for products with pitches ranging from 0.4mm to 1.27mm; compatible with DFN/QFN package sizes from 1x1 to 8x8.
Mechanical Specifications
Socket Material: PEEK, PPS, Torlon 4203, PEI, Torlon 5530
Socket Head Material: Aluminum (AL), Copper (Cu), POM
Probe Type: Spring probe
Operating Temperature: -40°C to 140°C
Kelvin Probe Lifespan: 300,000 cycles
Spring Force: 20g – 30g per pin
Electrical Specifications
Current: 2A (1A per pin)
Resistance: 50mΩ
Bandwidth: >30GHz @ -1dB
