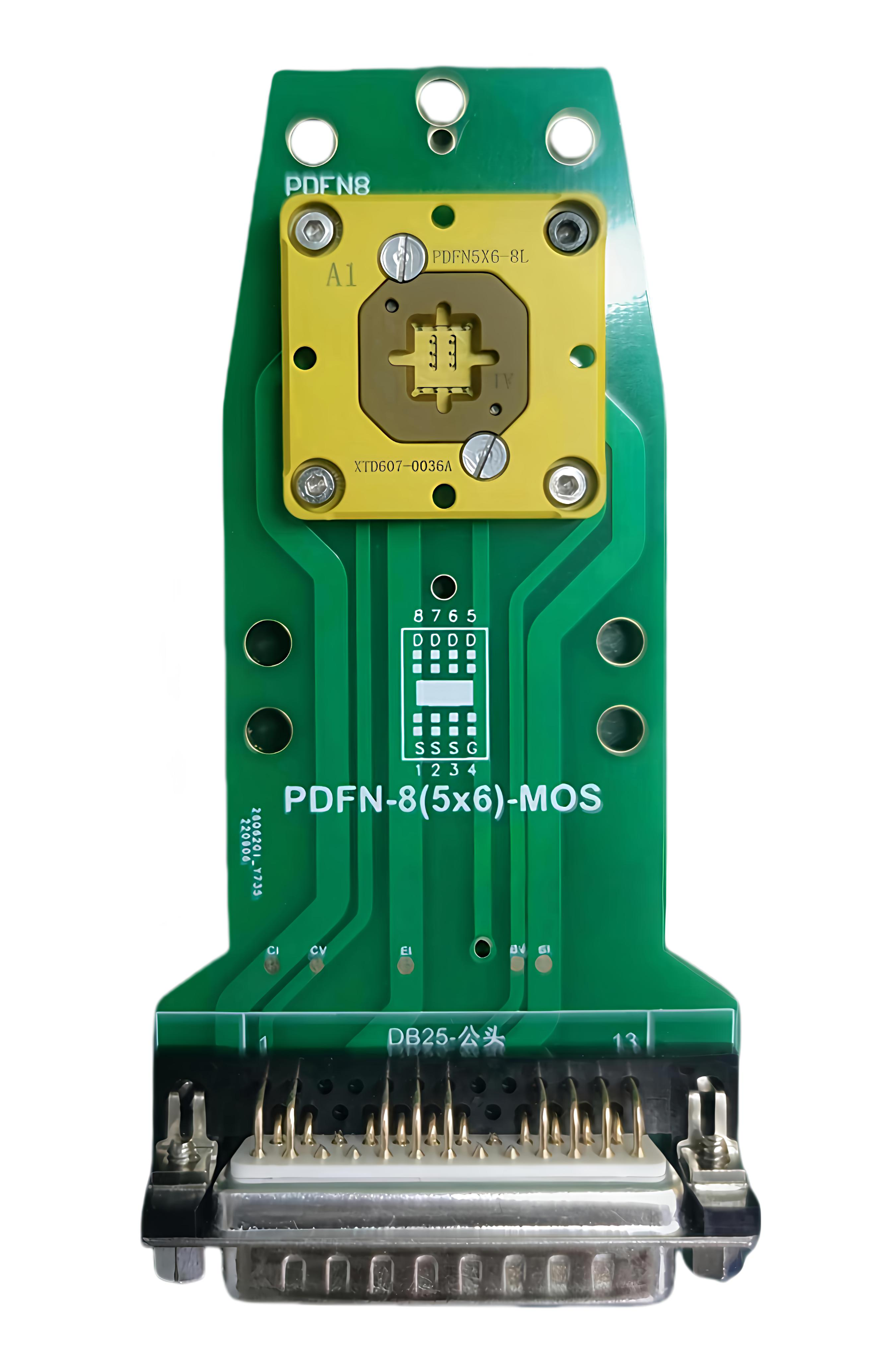

With PCB test board (turret machine)
Suitable for chip packages such as QFN, DFN, QFP, and SOP
Designed for rapid chip verification and testing
Compatible with automated testing (turret-style handlers)
Replaceable test inserts; easy maintenance and low cost
Suitable for pitches ranging from 0.4mm to 1.27mm
Product size specifications: DFN/QFN (1x1 to 8x8)
Socket body materials: Ceramic, PEEK, PPS, Torlon, PEI, Vespel SP-1
Socket head materials: AL, Cu, POM
Conductive element: Test insert
Operating temperature: Supports high temperatures up to 125°C
Contact lifespan: >1 million cycles (results vary based on test conditions)
Spring force: 20g ~ 30g per pin
Current: 2A (1A per pin)
Resistance: 50mΩ
What information do I need for a quote?
Please provide the device or package drawing, pitch, pin count, electrical and mechanical requirements, test conditions, quantity, and target delivery date.
Can this product be customized for my device package?
Customization depends on the package drawing, test requirements, operating conditions, and quantity. Contact our engineering team to confirm feasibility.
How are specifications confirmed?
Review the information on this page and send us your drawings and test requirements. Final specifications are confirmed in the quote or technical agreement.
