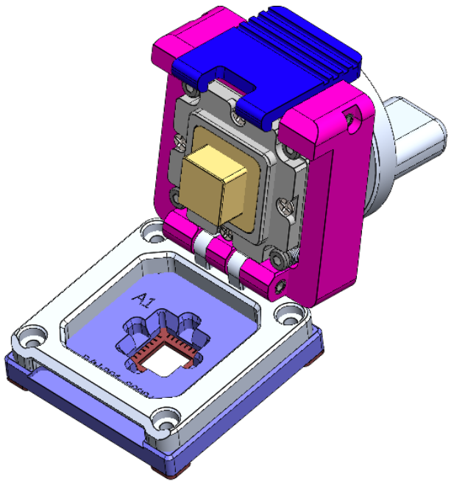

Z/C-Pin Custom-Shaped Pin RF Test Socket
Suitable for BGA, QFN, DFN, LGA, QFP, and other package types
Suitable for RF switches, filters, amplifiers, attenuators, baluns, and RF/microwave components
Compatible with various testing methods, including manual and automated testing
Replaceable probes; easy maintenance and low cost
Suitable for pitches ranging from 0.4mm to 1.27mm
Socket body materials: Ceramic, PEEK, PPS, Torlon, PEI, Vespel SP-1
Socket head materials: Aluminum, Copper, POM
Probe type: Spring-loaded contact (pogo pin style)
Operating temperature: -55°C to 155°C (supports tri-temp testing)
Probe lifespan: >1 million cycles (results vary based on test conditions)
Spring force: 20g – 30g per pin
Current rating: 2A (1A per pin)
Resistance: 50mΩ
Bandwidth: >20GHz @ -1dB
What information do I need for a quote?
Please provide the device or package drawing, pitch, pin count, electrical and mechanical requirements, test conditions, quantity, and target delivery date.
Can this product be customized for my device package?
Customization depends on the package drawing, test requirements, operating conditions, and quantity. Contact our engineering team to confirm feasibility.
How are specifications confirmed?
Review the information on this page and send us your drawings and test requirements. Final specifications are confirmed in the quote or technical agreement.
